Orin Carrier

Orin Carrier

$600.00
$600.00
Sale Sold out
SoM

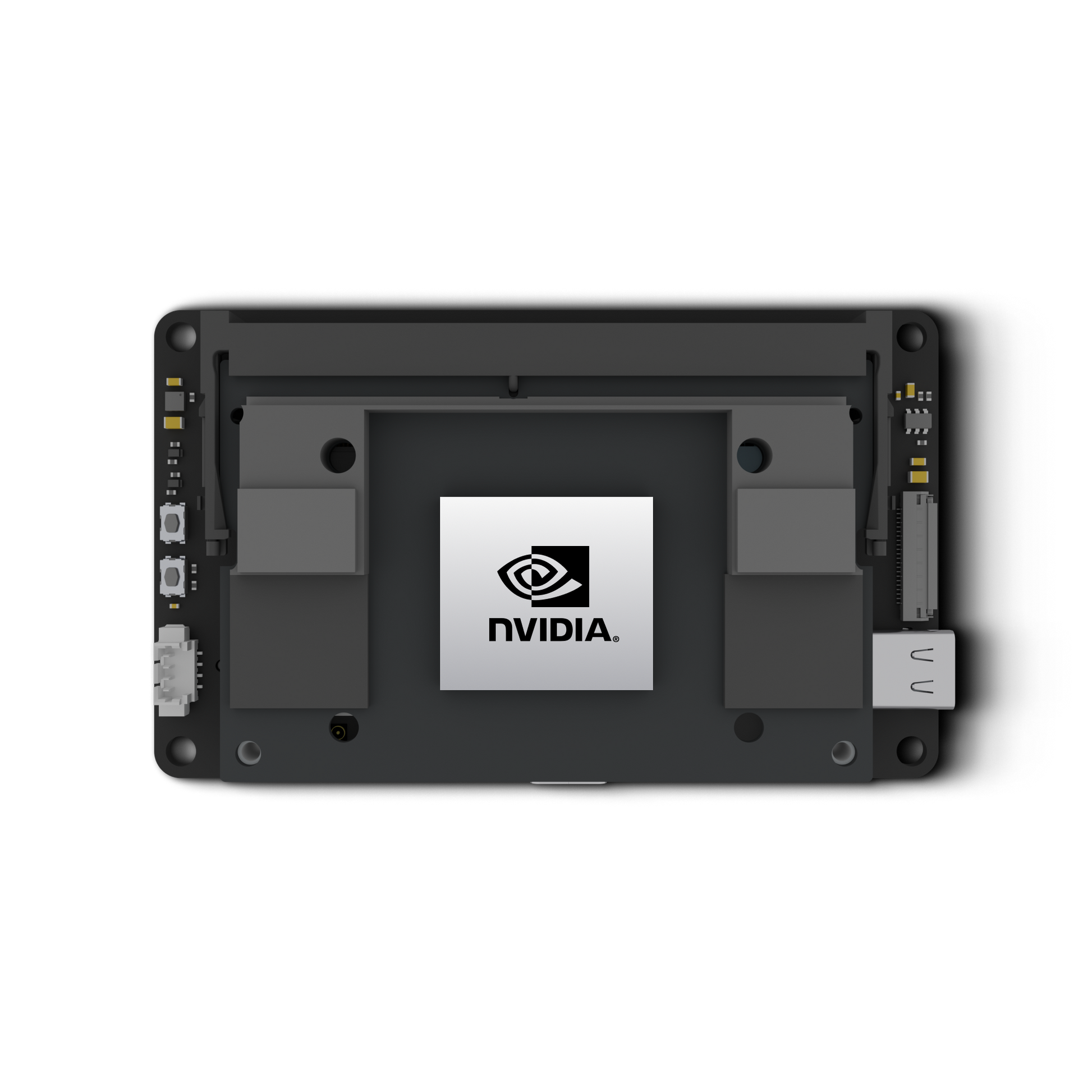

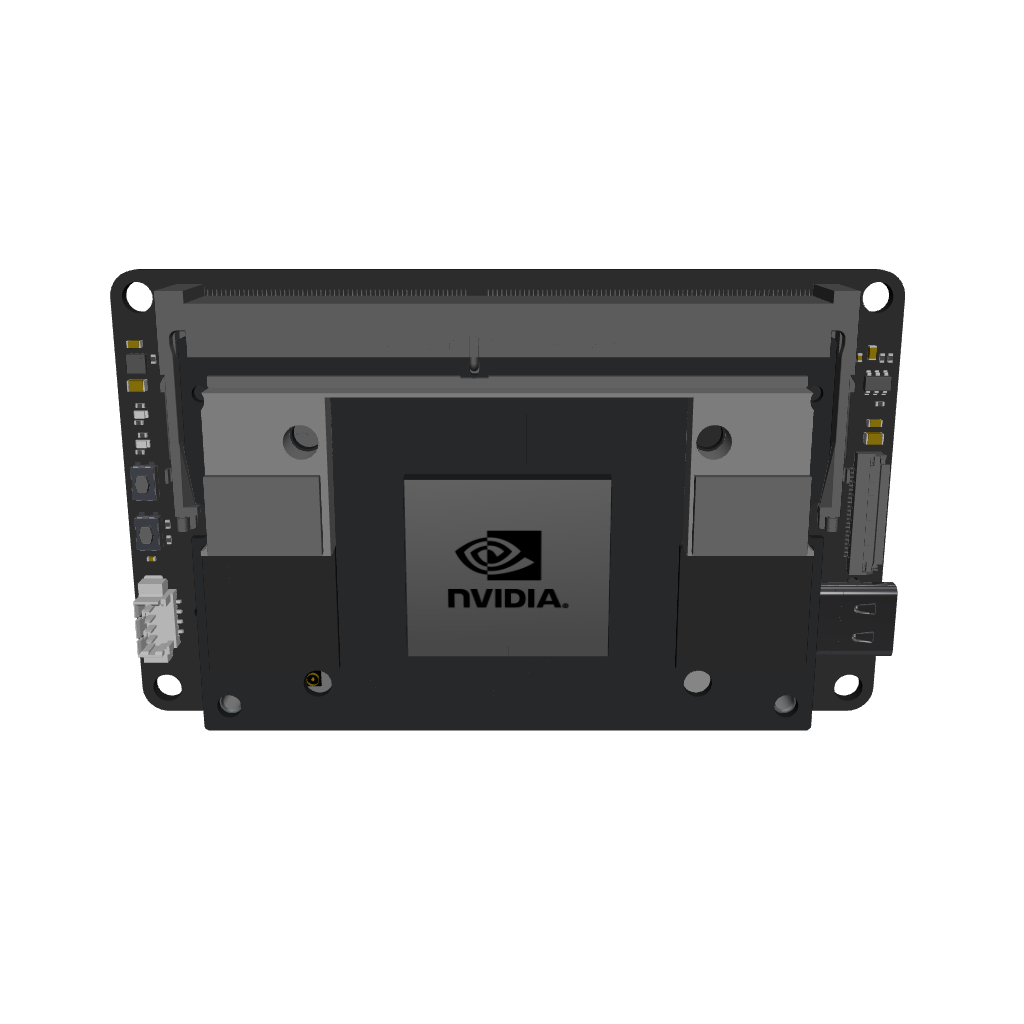

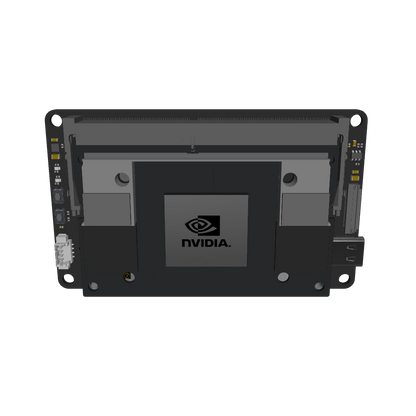

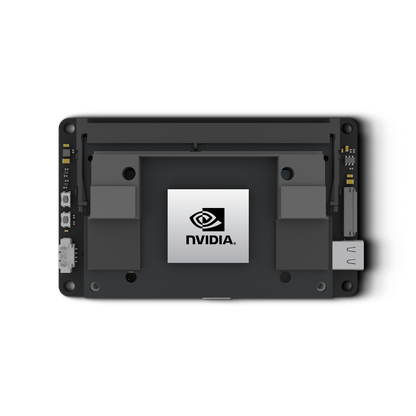

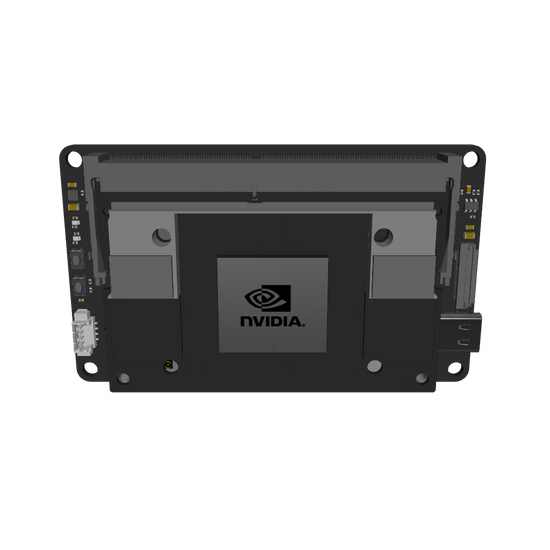

The Aleph Carrier Board is a space-grade flight computer designed to house and interface with the NVIDIA Jetson Orin NX SOM series for high-performance, on-orbit compute. Aleph enables AI-based autonomy, real-time image processing, and advanced decision-making directly on-board, reducing ground station dependency and latency.


The carrier board is capable of interfacing with one of Elodin's expansions boards or a custom designed board over it's Samtec ERF8-050 board-to-board connector. The board-to-board connector breaks out high speed interfaces including Gigabit Ethernet, PCIe 4.0 and USB-SS as well as low level serial protocols such as CAN, UART, I2C and GPIO

This carrier board is NDAA-compliant and manufactured in the USA.

Specification

Dimensions

89 x 53.5 x 19.3 mm

Connectivity
  • M.2 M Key - PCIe 4.0 x4
  • M.2 E Key - PCIe 4.0 x1, USB HS (480 Mbps), I2C, UART

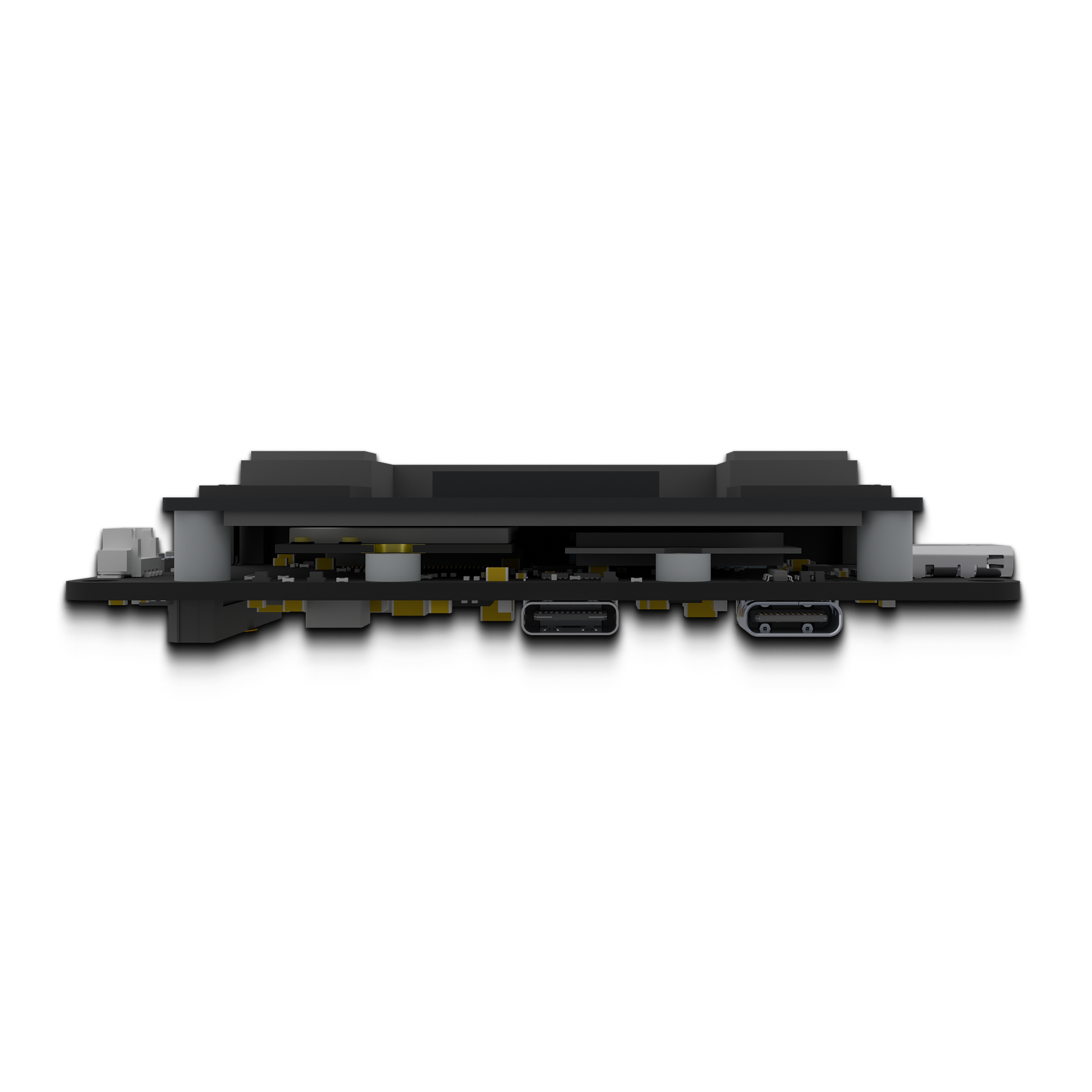

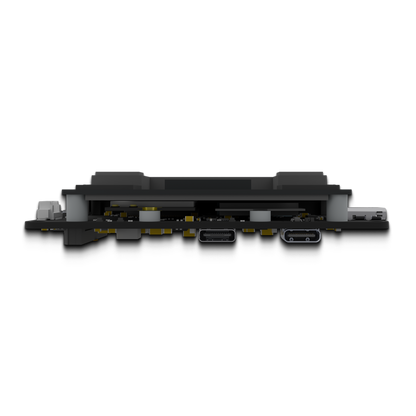

  • USB-C Serial Debug Port with USB Power Delivery
  • USB-C USB-SS+ (10 Gbps) with USB Power Delivery and DisplayPort Alt mode
  • USB-C USB-SS+ (10 Gbps)
  • 2x MIPI CSI-2 Interface (22 pin)
  • 2x PCIE 4.0 x1
  • USB-SS (5 Gbps)
  • 2x I2C
  • SPI
  • CAN TTL
  • UART
  • 6x GPIO
  • GigE with PoE
Compatibility
  • Nvidia Jetson Orin NX 8GB Module 117 Sparse INT8 TOPS
  • Nvidia Jetson Orin NX 16GB Module 157 Sparse INT8 TOPS
